Wenzhou Ace Machinery jacketed cooking kettles are available in 50L to 1000L capacities, with SUS304 or SUS316L construction options. Depending on the model and process requirements, configurations may include electric, steam, gas, or thermal-oil heating, an agitator, temperature control, insulation, and fixed or tilting operation. Suitable for batch cooking applications such as sauces, soups, jams, syrups, and dairy mixtures.
500L Jacketed Cooking Kettle with Agitator | Electric, Steam or Gas
价格范围：$2,282.82 至 $2,499.23
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products

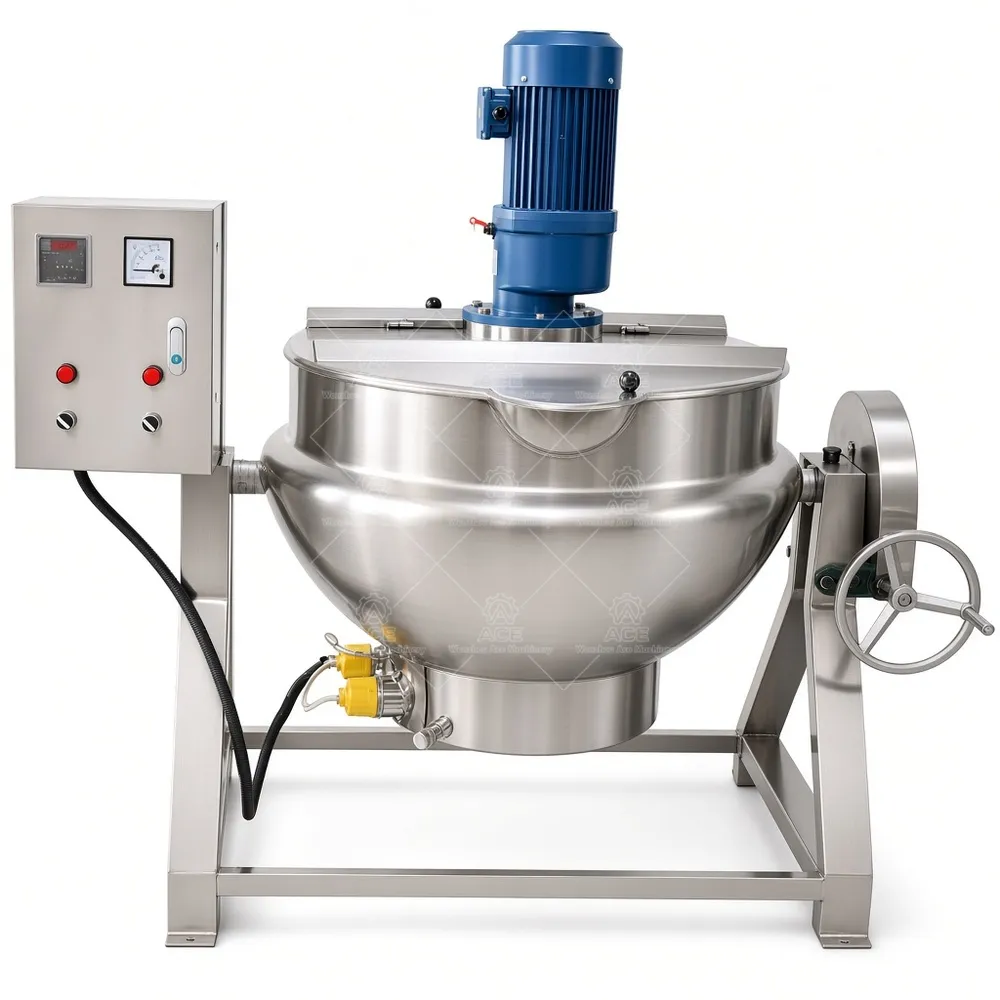

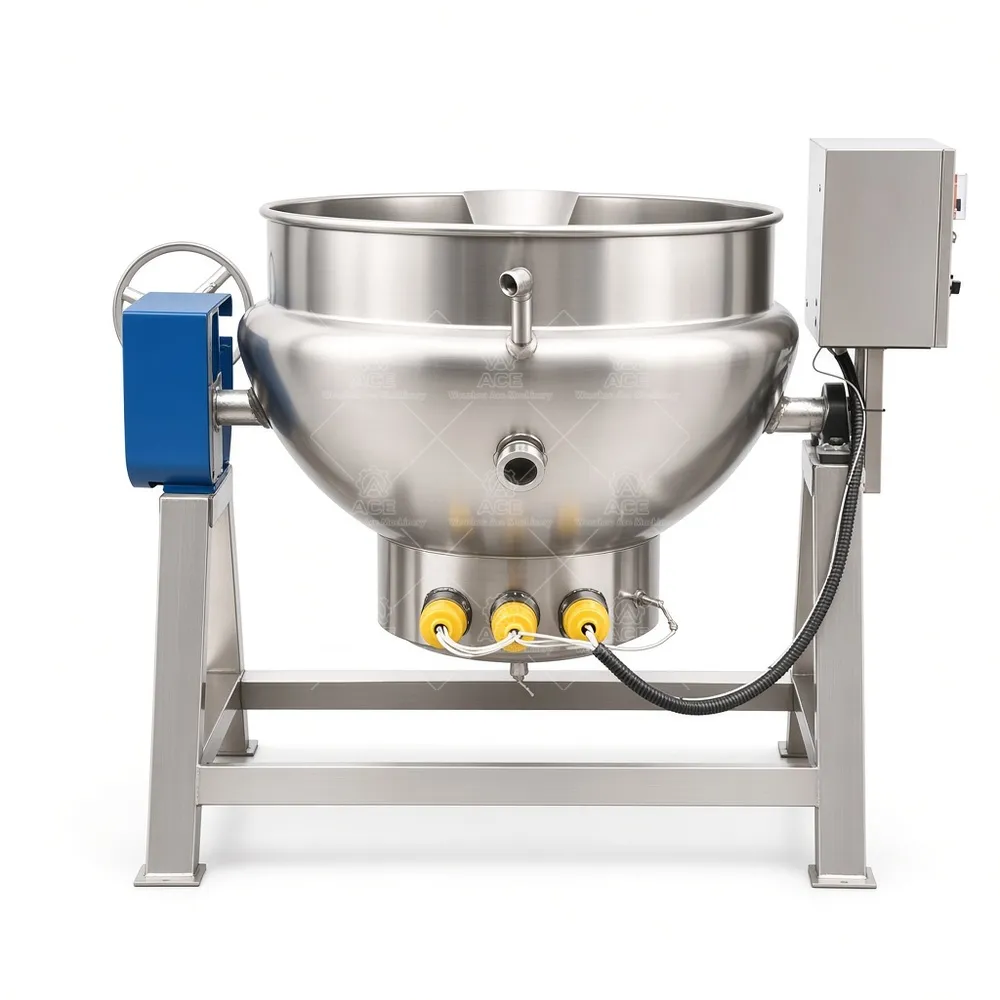

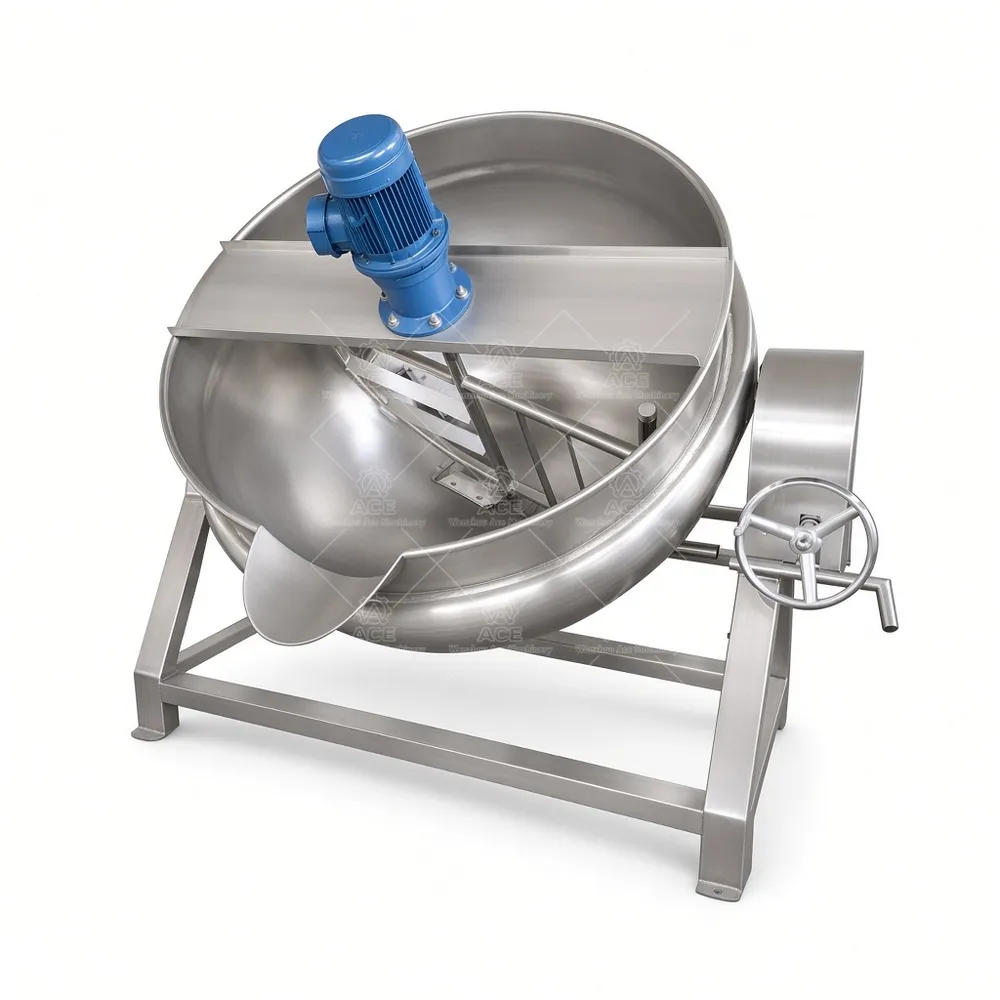

Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Batch Processing
When a batch thickens during cooking, direct heat can make temperature control and product movement harder. Our jacketed kettle heats the product indirectly: a selected heating medium warms the space around the vessel, transferring heat through the kettle wall. This arrangement is used for controlled batch cooking; suitable operation depends on the product, heating source, and selected model.
Wenzhou Ace Machinery manufactures 50L, 100L, 200L, 300L, 500L, and 1000L models. Available configurations may include SUS304 or SUS316L stainless steel, electric, steam, gas, or thermal-oil heating, and fixed or tilting vessels. An agitator can help move products during cooking, but its design and compatibility depend on the batch and model. Temperature controls, variable-speed drive, insulation, control panels, and other custom features may also be available. This is a cooking kettle, not an inline rotor-stator mixer; high-shear emulsification or powder dispersion should be reviewed separately.
Applications and Configuration
Typical food applications include sauces, gravies, jams, fruit fillings, soups, stocks, syrups, confectionery mixtures, dairy blends, and other fillings. A thick sauce, delicate dairy mixture, and sugar-based product may each call for different agitation, heating, and discharge arrangements. Food and beverage ingredients such as dressings, mayonnaise, liquid seasonings, starches, gums, and stabilizers require process-specific review. Creams, lotions, shampoos, detergents, pharmaceutical liquids, coatings, adhesives, and other chemical preparations are potential applications only when the vessel, materials, seals, and process are confirmed suitable. No single standard configuration fits every formula.
Technical Specifications
| Item | Details |
|---|---|
| Product | Jacketed cooking kettle |
| Capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel / tilt | Fixed or tilting; manual or hydraulic tilt where applicable |
| Agitation / controls | Optional; configuration dependent |
| Customization | Available to request |
Selection and FAQs
What capacity should I request? Share batch size and working fill level. Can every size use every heat source? No; availability depends on model. Is an agitator included? It is an optional configuration. Can the kettle tilt? Selected models offer fixed or tilting construction. What details help with a quotation? Provide product properties, batch volume, heat source, mixing needs, and discharge method. We can review these requirements through our factory-direct manufacturing and customization service.
Send Wenzhou Ace Machinery your capacity, product, preferred heating method, and agitation or tilting requirements to discuss a suitable configuration.
