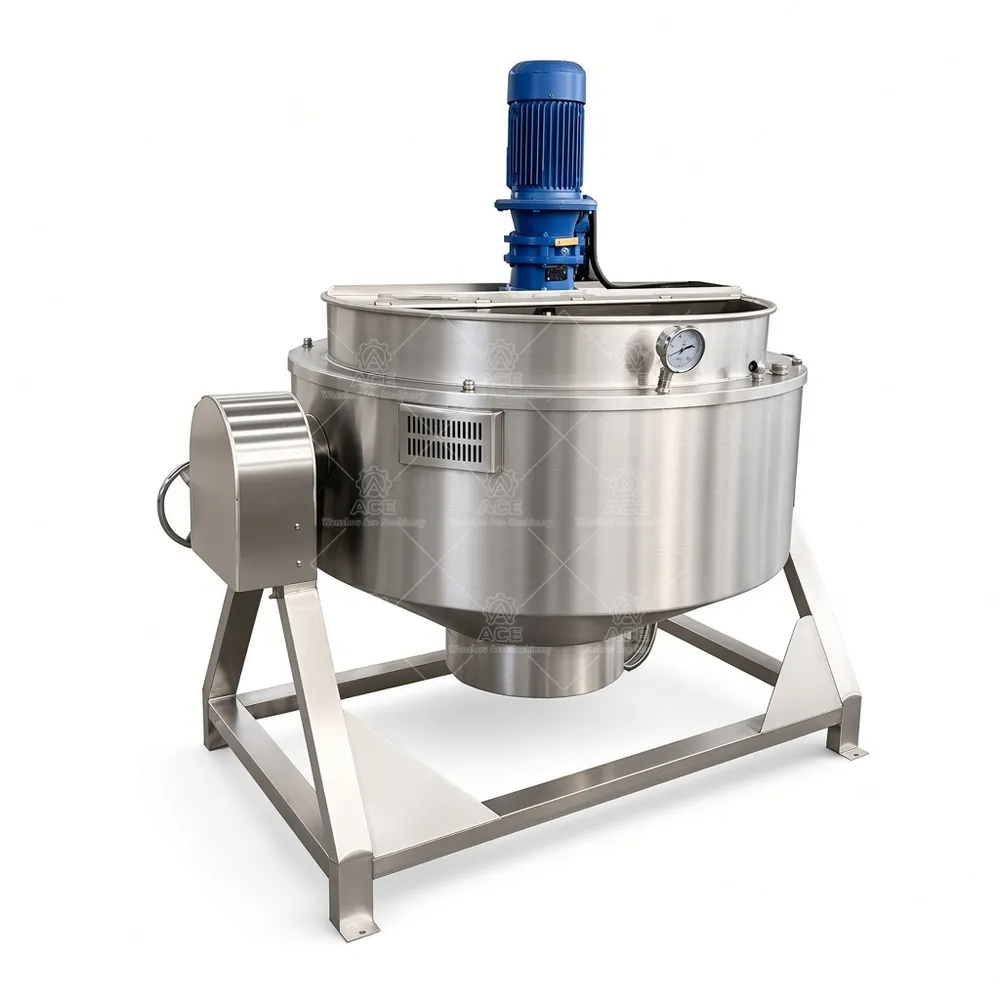

The Wenzhou Ace Machinery tilting jacketed kettle is designed for batch cooking applications such as sauces, soups, jams, gravies, syrups, and dairy mixtures. Available in 50 L to 1,000 L capacities, it can be configured with SUS304 or SUS316L stainless steel, selected heating methods, a mixer, and applicable tilting options. Final features depend on model compatibility and process requirements.

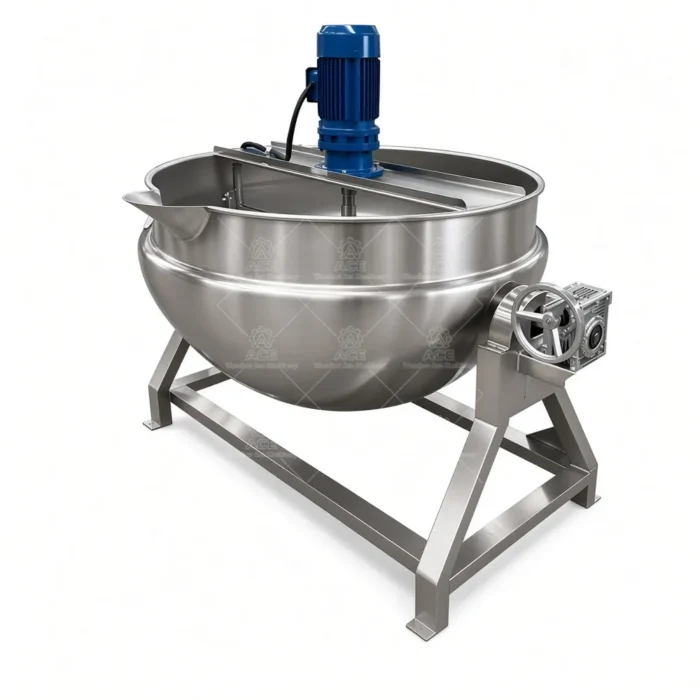

Tilting Jacketed Kettle with Mixer for Sauce Production
价格范围：$1,845.83 至 $2,020.08
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge

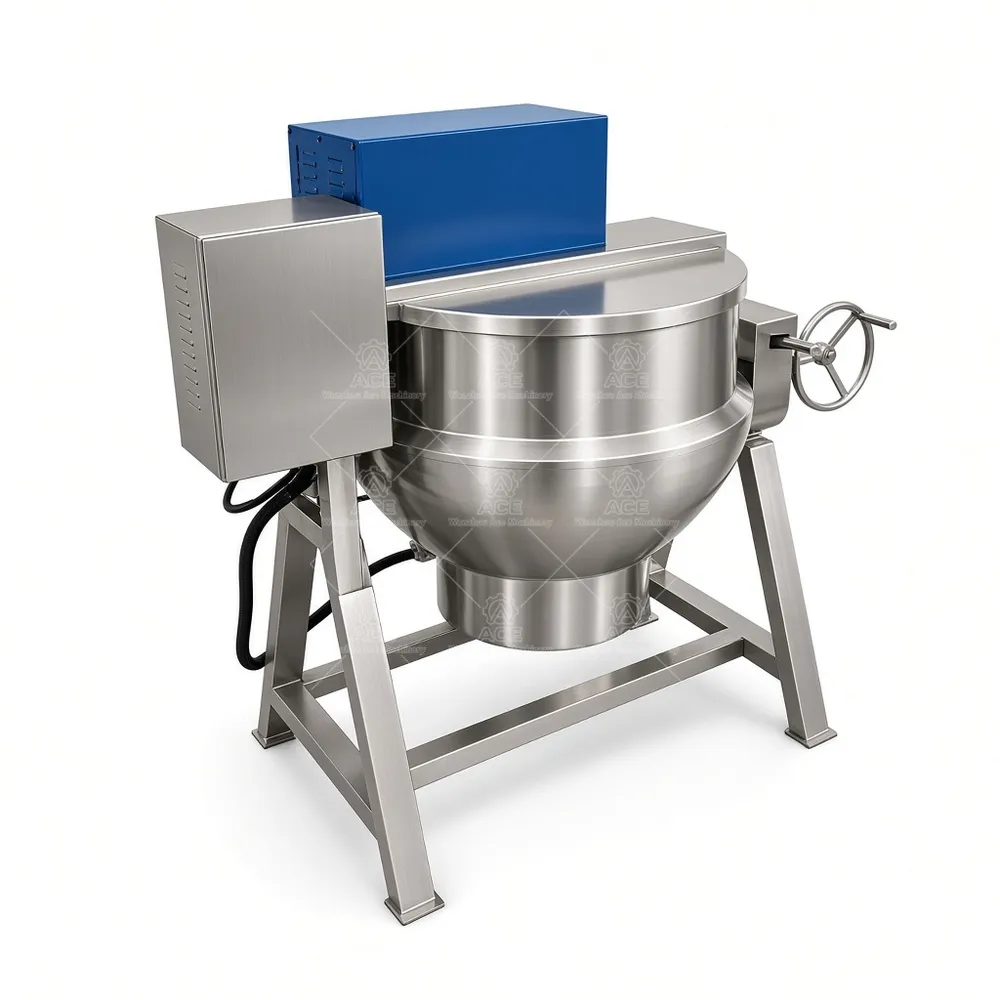

- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components

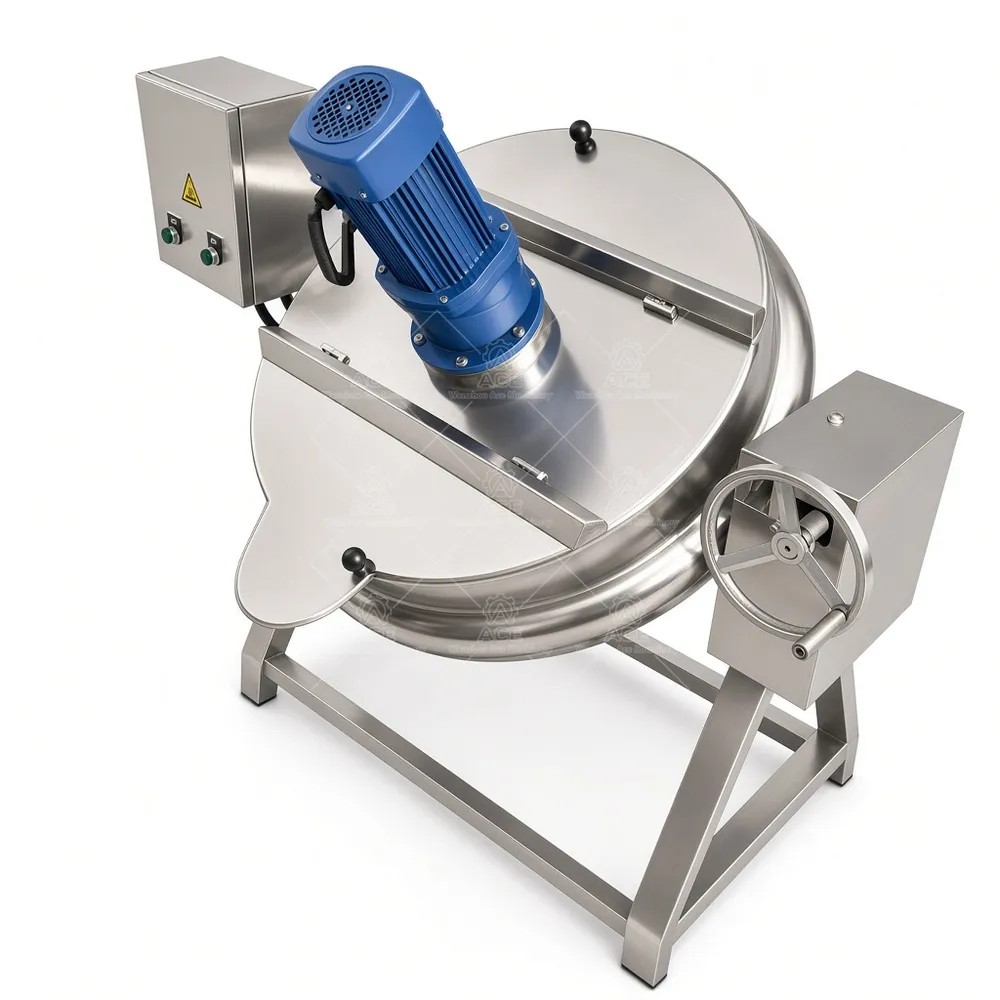

- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion

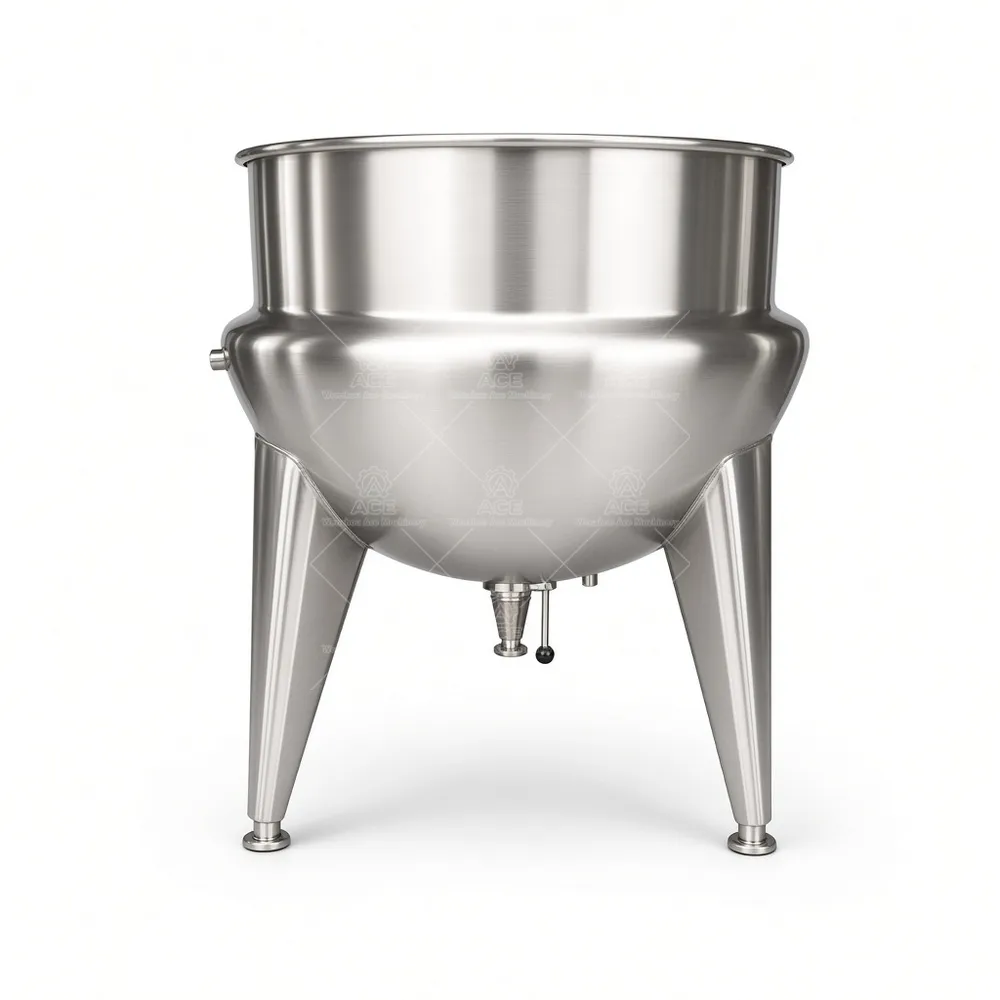

- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking for Controlled Batch Production
When a sauce thickens or a fruit filling contains delicate pieces, direct heat can create hot spots and make consistent mixing more difficult. Our jacketed kettle heats the product indirectly: a selected heating medium warms the vessel through its jacket while the product is stirred. This arrangement supports batch cooking for products such as gravy, jam, soup, syrup, dairy mixtures, and confectionery blends. Actual results depend on the recipe, batch size, and selected configuration.
Wenzhou Ace Machinery manufactures fixed and tilting kettle configurations, depending on the model. A mixer can help keep ingredients moving during cooking; the suitable mixing arrangement depends on product viscosity and processing requirements. Tilting may assist with product discharge where included in the selected model. Manual or hydraulic operation may be available, as applicable. Heating options include electric, steam, gas, or thermal oil, subject to model compatibility.
Features and Production Considerations
- Indirect jacket heating: Select a heat source to suit your facility and process requirements.
- Mixer option: Supports agitation during batch cooking; specify ingredients, viscosity, and any pieces or solids.
- Tilting option: Can support emptying and handling, with operation type depending on the model.
- Optional controls and insulation: Temperature control, variable-speed drive, insulation, and a control panel may be available when compatible.
- Stainless steel choices: SUS304 or SUS316L can be specified based on product and cleaning conditions.
These are batch cooking kettles, not inline rotor-stator mixers. Applications may include food and beverage production and, subject to material, seal, and process suitability, selected cosmetic, personal-care, pharmaceutical, or chemical preparations. One standard setup is not appropriate for every formulation.
Technical Specifications
| Item | Specification |
|---|---|
| Product | Jacketed kettle |
| Available capacity | 50 L, 100 L, 200 L, 300 L, 500 L, 1,000 L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel / tilt | Fixed or tilting; manual or hydraulic tilt where applicable |
| Mixer / temperature control | Optional; configuration dependent |
| Customization | Available on request, subject to model compatibility |
FAQs
How do I select capacity? Share your target batch size and usable product volume so we can discuss a suitable model.
Does every size support every heat source? No. Heating and accessory availability depend on the selected model.
Can the kettle tilt? Tilting is available on applicable configurations; operation may be manual or hydraulic.
Which steel should I choose? SUS304 and SUS316L are available. Discuss ingredients and cleaning conditions with our team.
What details help with a quotation? Provide product type, batch size, heat source, mixing needs, and discharge or tilting requirements.
Discuss Your Configuration
As a factory-direct manufacturer, Wenzhou Ace Machinery can discuss customization around your product, batch scale, heat supply, and workflow. Send your required capacity, product details, preferred heating method, and mixer or tilting requirements for a configuration review and quotation.
