Wenzhou Ace Machinery’s jacketed kettles are available in 50 L to 1,000 L capacities, with SUS304 or SUS316L stainless steel and electric, steam, gas, or thermal oil heating options depending on the model. Fixed or tilting designs and optional agitation, temperature control, insulation, and controls can be discussed to match your product and batch process.

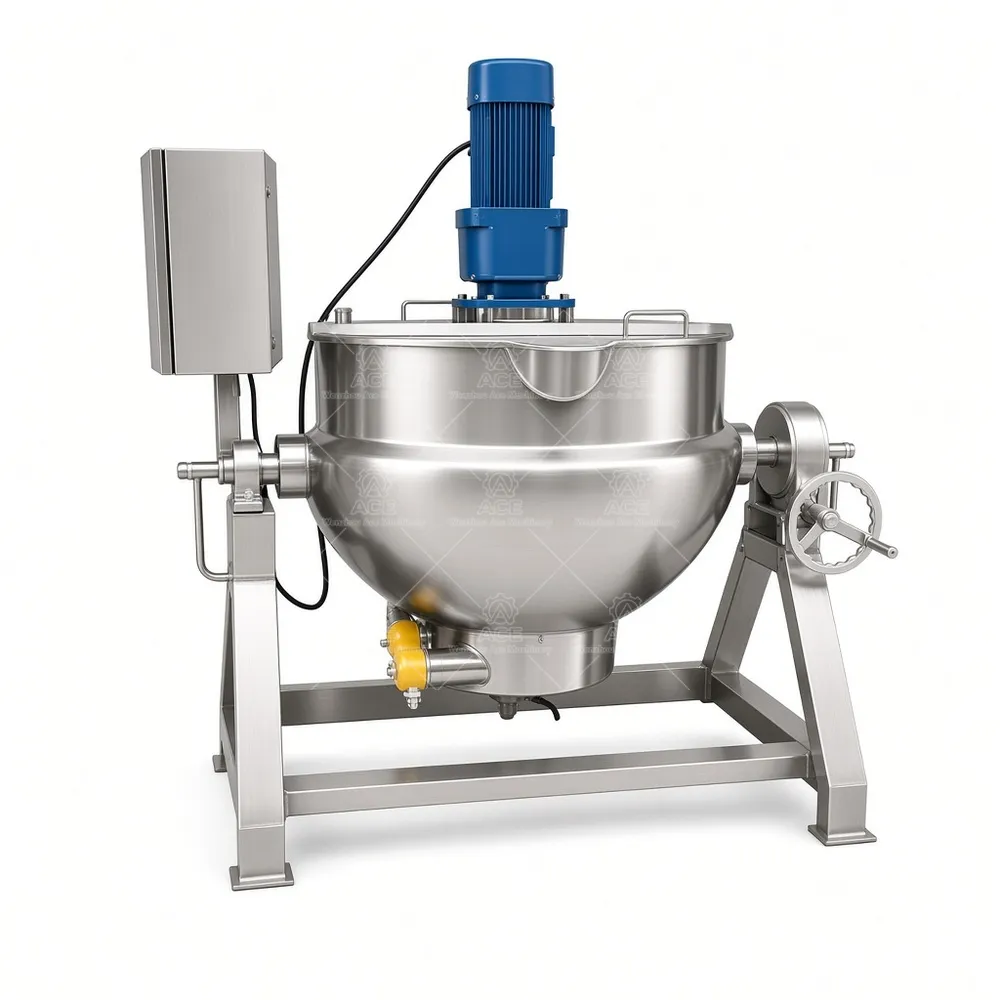

Electric Jacketed Kettle with Agitator for Jam and Food Processing
Price range: $1,868.68 through $2,052.18
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification

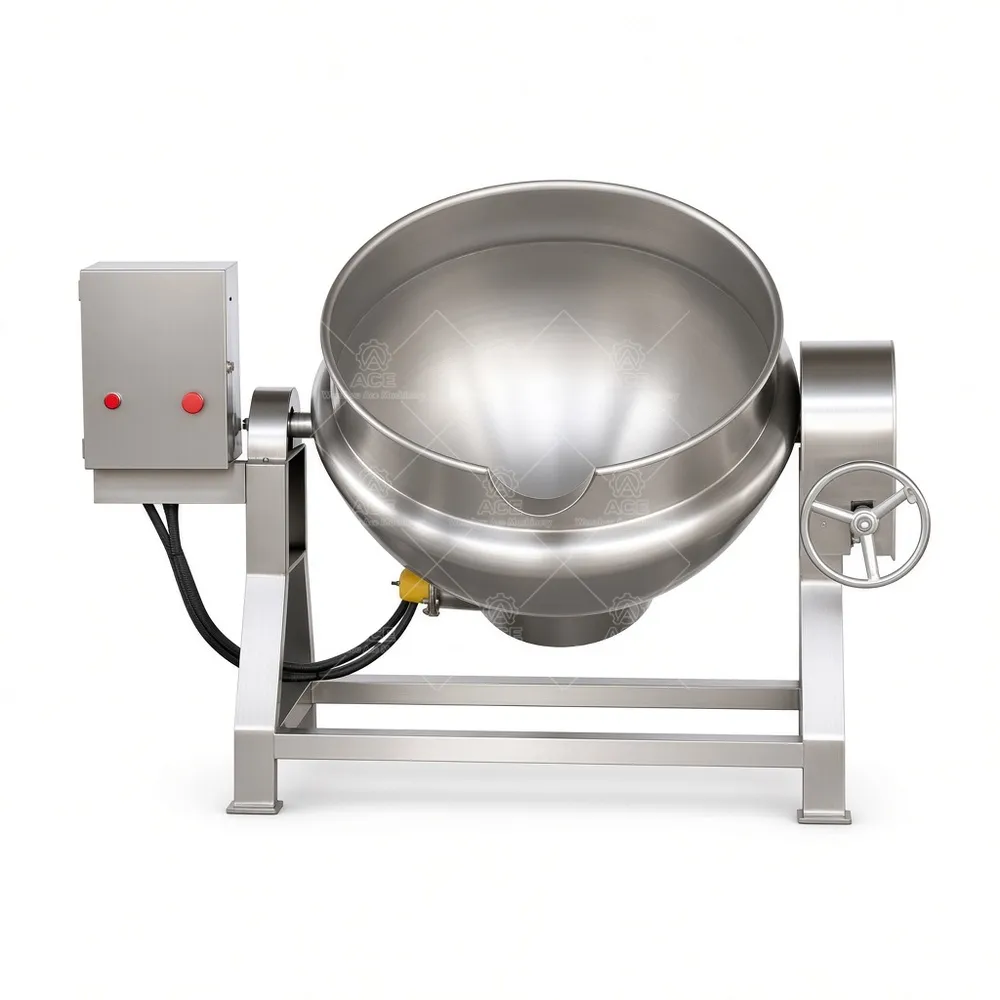

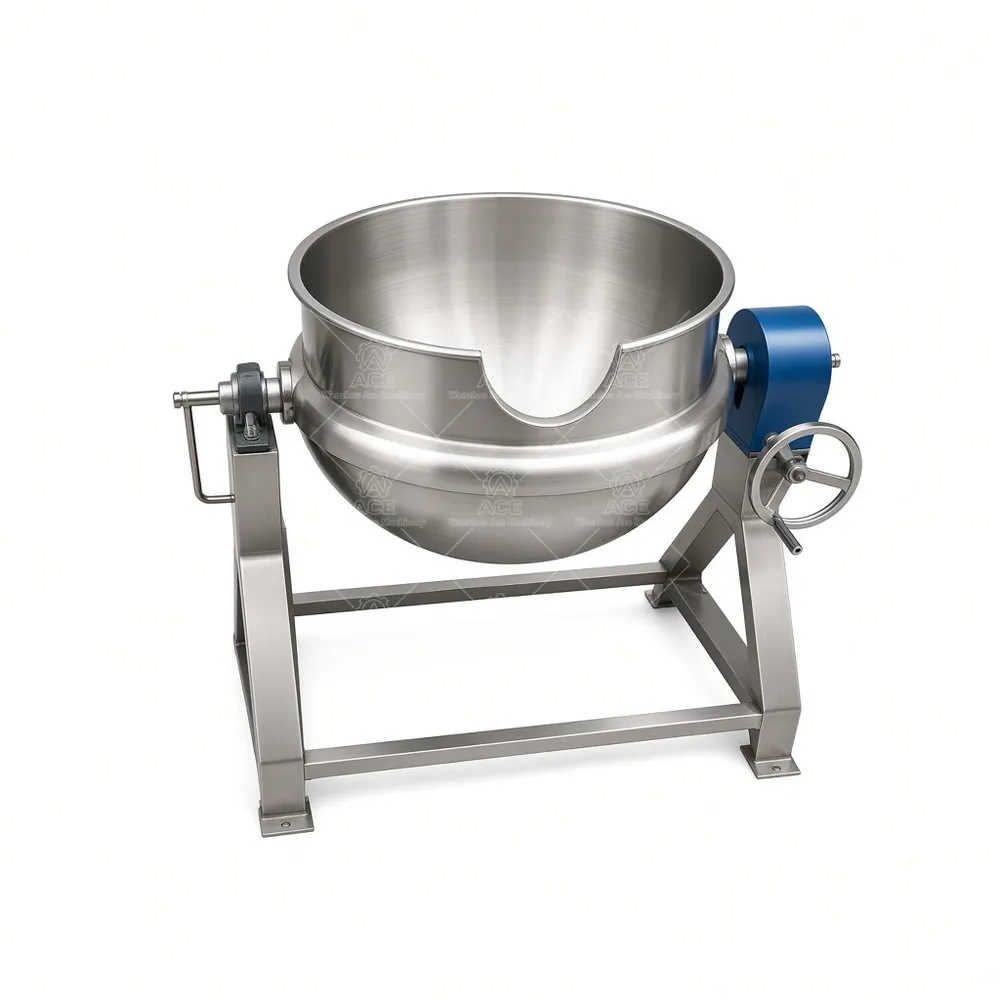

Jacketed Kettle for Controlled Batch Cooking
Cooking thick products in a direct-heated pot can create hot spots and scorching, especially as moisture drops and the batch becomes harder to mix. Our jacketed kettle heats product indirectly: the selected heating source warms the space around the inner vessel, and heat passes through the vessel wall into the batch. An optional agitator supports mixing during cooking; the suitable arrangement depends on the product and kettle model.
Wenzhou Ace Machinery manufactures capacities from 50 L to 1,000 L, in fixed or tilting configurations where available. An agitator can help keep sauces, fillings, and other suitable products moving during heating. Temperature control, variable-speed drive, insulation, and a control panel are optional where compatible. These options affect routine operation: insulation helps limit heat loss from the vessel, while adjustable mixing can accommodate different product viscosities. Cleaning access, discharge method, and the product’s tendency to stick should also be discussed during configuration.
Typical Applications
Food uses include sauces and gravy, jam and fruit fillings, soup and stock, syrup, confectionery mixtures, dairy blends, and other suitable foods. Each recipe has different heating, mixing, and discharge needs. Similar kettles may be considered for beverage ingredients, cosmetic creams or lotions, and compatible liquid formulations in pharmaceutical or chemical processing; suitability depends on the materials, seals, hygiene requirements, and process. A standard food configuration should not be assumed suitable for every formulation.
Technical Specifications
| Product name | Jacketed kettle |
|---|---|
| Available capacity | 50 L, 100 L, 200 L, 300 L, 500 L, or 1,000 L |
| Material | SUS304 or SUS316L stainless steel |
| Heating method | Electric, steam, gas, or thermal oil; availability depends on model |
| Vessel configuration | Fixed or tilting, depending on model |
| Tilting option | Manual or hydraulic where applicable |
| Agitation | Optional; configuration depends on model and product |
| Temperature control | Optional, depending on configuration |
| Customization | Available to suit product, batch size, heating, and workflow |
Questions from Production Teams
How do I identify capacity? Share target batch size and working volume needs. Can every size use every heat source? No; available combinations depend on the model. Is an agitator included? It is an optional configuration. Can the kettle tilt? Fixed and tilting models are available, with manual or hydraulic operation where applicable. What details help with a quotation? Provide product, batch size, heating source, mixing and discharge requirements, material preference, and available utilities.
Discuss Your Configuration
As a direct manufacturer, Wenzhou Ace Machinery can review customization options against your process. Send your required capacity, product, preferred heating method, and agitator or tilting requirements so our team can recommend a suitable kettle configuration.
