Wenzhou Ace Machinery jacketed kettles are available in 50L to 1000L capacities, with SUS304 or SUS316L stainless steel and model-dependent electric, steam, gas, or thermal oil heating. Fixed and tilting designs, agitation, temperature control, and other options can be reviewed around your product, batch size, and production requirements.

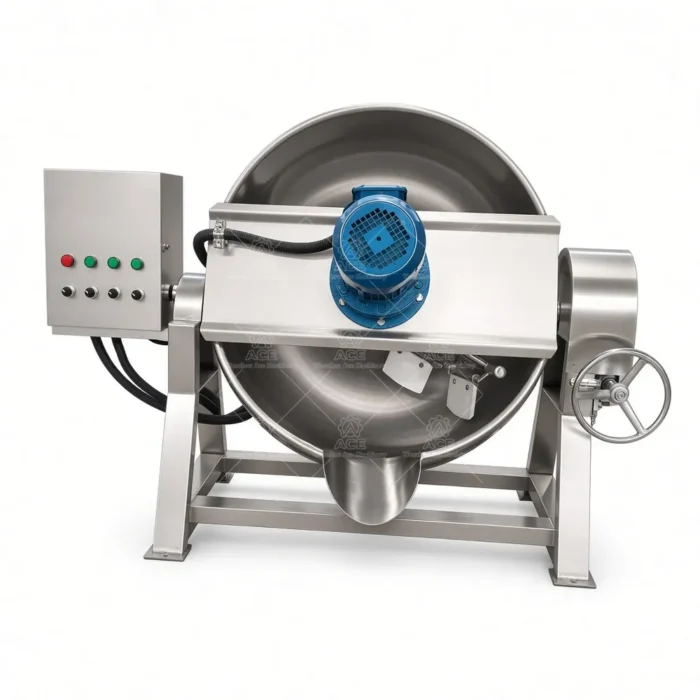

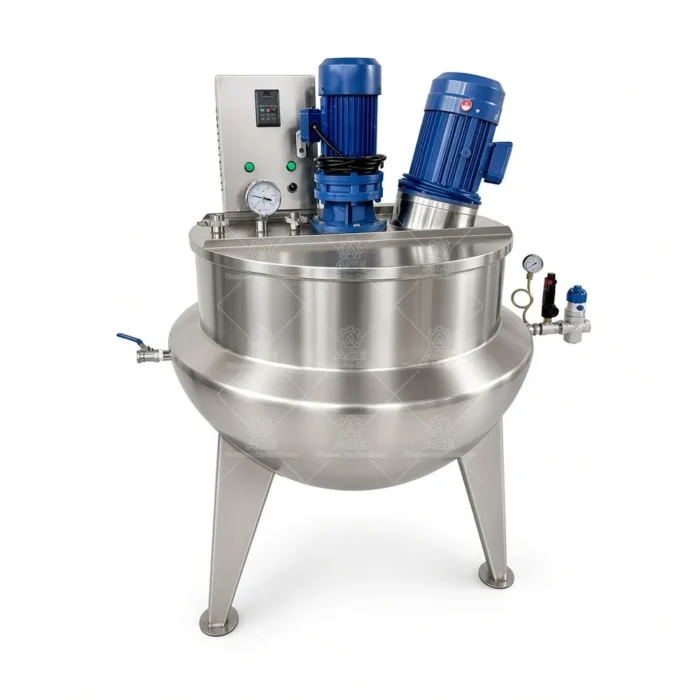

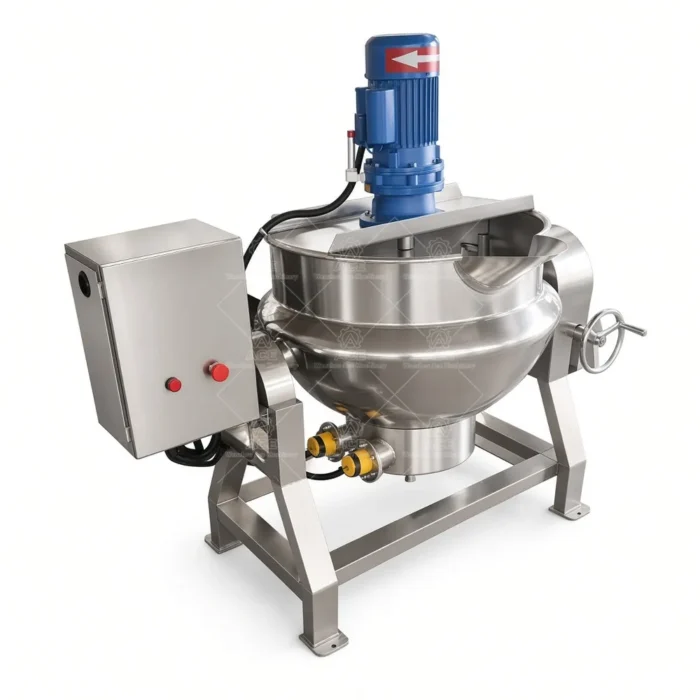

Automatic Stainless Steel Jacketed Kettle for Syrup, Sauces and Food Cooking
价格范围：$2,091.24 至 $2,292.42
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Kettle for Controlled Batch Cooking
Cooking a viscous sauce, fruit filling, or meat gravy requires heat to reach the batch without relying on direct flame against the product-contact surface. Our jacketed kettle transfers heat through the vessel wall from a selected heating source, helping operators cook and stir batches with indirect heat. Wenzhou Ace Machinery builds configurations for food plants and commercial kitchens where batch size, product behavior, and available utilities guide equipment selection.
Production Features
- Capacity choices: 50L, 100L, 200L, 300L, 500L, and 1000L models support different batch plans; the working batch depends on the product and process.
- Heating options: Electric, steam, gas, or thermal oil heating may be available depending on the model and site conditions.
- Vessel and handling: Fixed or tilting construction is available by model. Tilting can simplify emptying; operation may be manual or hydraulic where applicable.
- Optional controls: An agitator, temperature control, variable-speed drive, insulation, control panel, and other custom features can be considered for compatible models. Agitation can help manage products that require mixing during cooking; requirements vary with viscosity and solids.
Applications
Typical food uses include sauces, dressings, gravy, jam, fruit fillings, soups, stock, syrups, confectionery mixtures, dairy blends, and other suitable foods. Each recipe has different mixing, heating, and discharge needs. Compatible non-food processes may include creams, lotions, liquid detergents, liquid formulations, coatings, or water-based emulsions, subject to process review and suitable contact materials and seals. No single configuration fits every formulation.
Technical Specifications
| Product name | Jacketed kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model-dependent |
| Vessel configuration | Fixed or tilting; model-dependent |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation and temperature control | Optional; configuration-dependent |
| Customization | Available according to product and process requirements |
Configuration and Ordering
As a direct manufacturer, we review the product, target batch size, heating utility, mixing needs, and discharge method before recommending a build. Share ingredient behavior, solids content, desired batch volume, operating environment, and preferred options. Final compatibility depends on the selected model.
FAQs
Can every capacity use every heating method? No. Availability depends on the model and requested configuration.
Is an agitator included? It is an optional feature where compatible; describe your product and mixing needs.
Can I choose SUS316L? SUS304 and SUS316L are material options; confirm suitability for your ingredients and cleaning process.
Are tilting models available? Some models can be fixed or tilting, with manual or hydraulic operation where applicable.
What should I send for a quotation? Provide capacity, product, heating preference, and agitation, tilting, and discharge requirements.
Request a Configuration Review
Contact Wenzhou Ace Machinery with your batch details and preferred options. Our team can review the process and discuss a suitable kettle configuration.
