Wenzhou Ace Machinery manufactures jacketed cooking kettles in 50L to 1000L capacities, with SUS304 or SUS316L stainless steel options. Depending on the model, configurations may include electric, steam, gas, or thermal oil heating, fixed or tilting vessels, and optional mixing and temperature controls. Share your product, batch size, heat source, and discharge needs to discuss a configuration for your process.

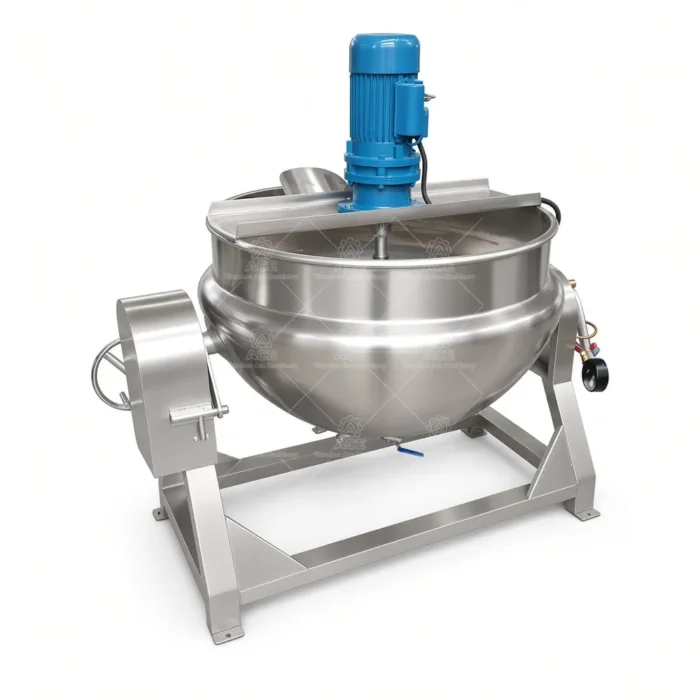

300L SUS304 Jacketed Cooking Kettle with Mixer
价格范围：$1,911.20 至 $2,049.57
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Batch Processing
Batch size, product thickness, and available heat source all affect kettle selection. A jacketed kettle transfers heat through the vessel wall from a surrounding jacket rather than applying direct heat to the product. This indirect heating approach is useful for cooking sauces, soups, and other mixtures that need controlled heating and regular agitation. Actual operation depends on the selected heating and control configuration.
We manufacture these kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities, using SUS304 or SUS316L stainless steel. Fixed and tilting arrangements are available on applicable models. A mixer, temperature control, variable-speed drive, insulation, and control panel can be discussed where compatible. Agitation helps move product through the vessel during cooking; the required mixer design depends on viscosity, ingredients, and batch size. It is not a high-speed rotor-stator system unless separately specified and confirmed.
Typical Applications
Food uses include sauces and gravies, jam and fruit fillings, soups and stocks, syrups, confectionery mixtures, dairy blends, and other compatible products. Thick fillings or mixtures with settling ingredients may require a different agitator arrangement from a thin syrup. Other potential uses include cosmetic creams and lotions, liquid detergents, pharmaceutical liquids or excipient dispersions, and compatible water-based chemical formulations. Suitability depends on the recipe, materials, seals, cleaning needs, and process requirements; one standard configuration is not appropriate for every formulation.
Technical Specifications
| Item | Details |
|---|---|
| Product name | Jacketed cooking kettle |
| Capacity | 50L–1000L; listed sizes: 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; configuration dependent |
| Vessel | Fixed or tilting, depending on model |
| Tilting | Manual or hydraulic, where applicable |
| Agitation and controls | Mixer, temperature control, variable-speed drive, and control panel; configuration dependent |
| Customization | Available according to product and process requirements |
Frequently Asked Questions
How do I choose capacity? Share your target batch size and whether the stated volume is working or nominal capacity. Can every size use every heat source? No; availability depends on the model. Can the kettle tilt? Tilting and its operating method are model-dependent. Can you match the mixer to a thick product? Provide viscosity, ingredients, and any settling or shear concerns for review. What should an inquiry include? Capacity, product, preferred heat source, agitation, discharge method, and site or cleaning constraints.
Request a Configuration Review
Wenzhou Ace Machinery offers factory-direct manufacturing and customization. Send your batch capacity, product details, preferred heating method, and mixer or tilting requirements so our team can review a suitable configuration.
We use it to cook beef, and it works really well. The heating is even, the beef cooks nicely, and the mixing system makes the whole process much easier.
We’re really happy with this cooking kettle. The build quality is good, and the stainless steel looks solid and easy to clean. The heating works well, and the mixer runs smoothly, which makes cooking large batches much easier.
