This 200-liter tilting jacketed cooking kettle is designed for batch heating and mixing of products such as sauces, soups, fruit fillings, syrups, and dairy mixtures. Heating, materials, agitation, and tilt arrangements are selected by model and process needs. Wenzhou Ace Machinery can review your batch size, product characteristics, preferred heat source, and discharge requirements to help determine a suitable configuration.
200L Tilting Jacketed Cooking Kettle with Agitator | Electric, Steam, Gas
价格范围：$1,982.63 至 $2,175.74
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation

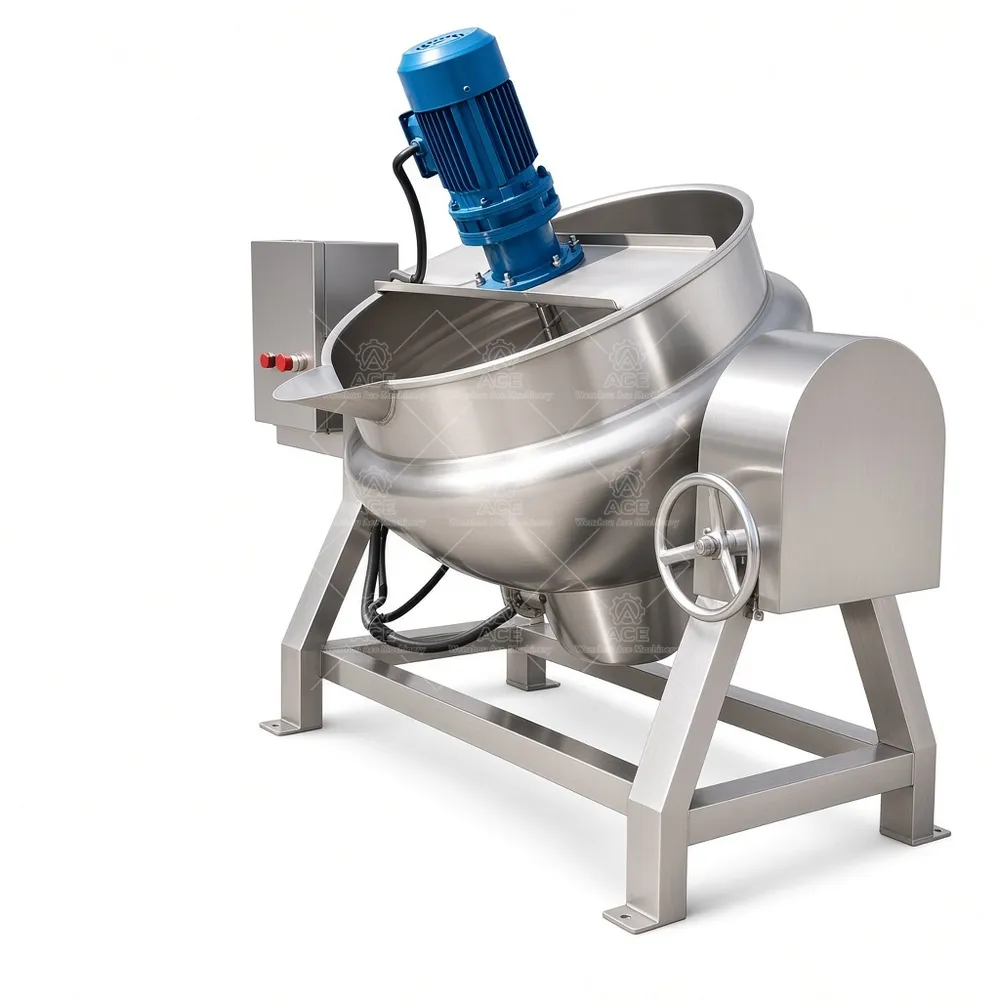

- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products

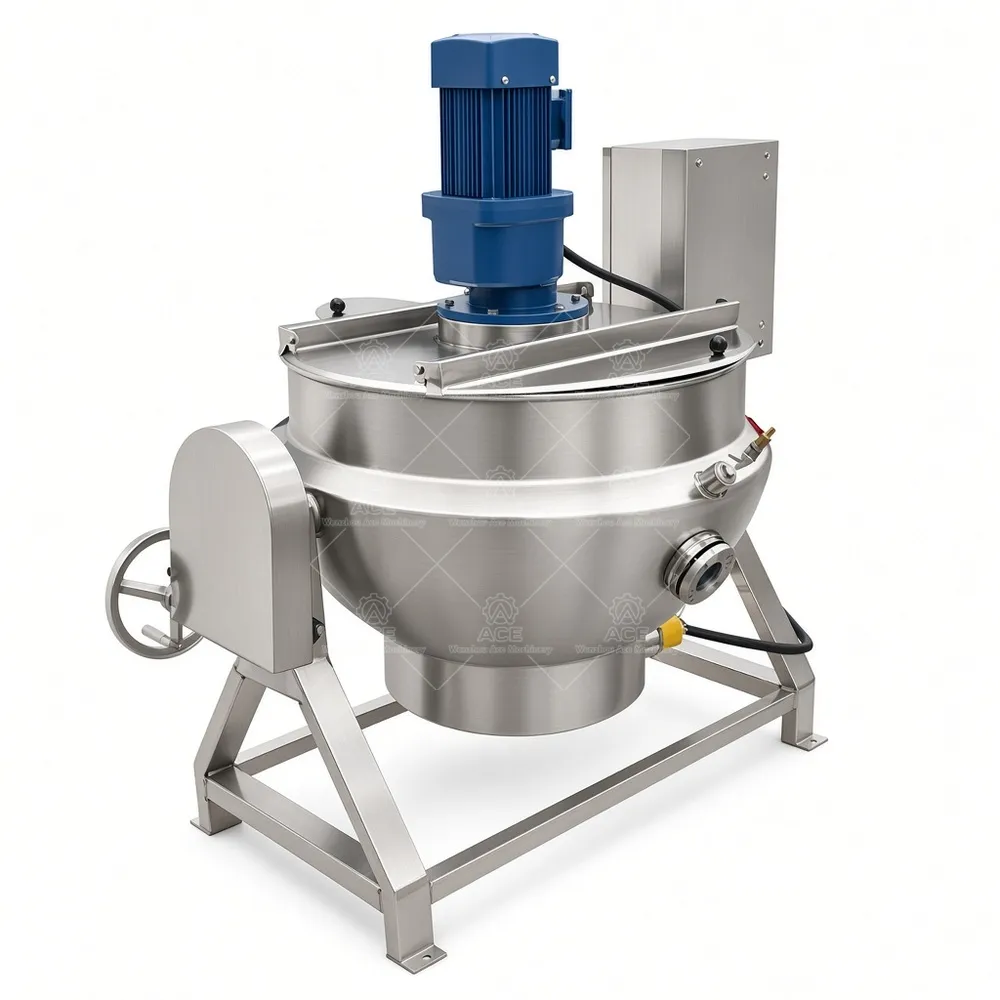

Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Controlled Batch Production
Heating a thick sauce or fruit filling directly can create hot spots and sticking, especially as a batch concentrates. This 200-liter jacketed cooking kettle heats product indirectly: a selected heating medium warms the jacket, and heat passes through the kettle wall into the batch. An agitator can help move product during cooking, subject to the selected model and product requirements.
We manufacture jacketed kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities, using SUS304 or SUS316L stainless steel. Heating options include electric, steam, gas, or thermal oil. Available configurations vary; not every capacity supports every heat source or accessory. Fixed and tilting bodies are available on applicable models, with manual or hydraulic tilt options where compatible. Tilting can assist discharge, while a fixed kettle may suit a line with a separate transfer arrangement.
Applications and Configuration
Typical food batches include sauces and gravies, jam and fruit fillings, soups, syrups, dairy mixtures, and confectionery mixes. The right agitator and heating arrangement depend on viscosity, solids, batch size, and the need to scrape or move product. Other potential uses include compatible beverage ingredients, cosmetic emulsions, liquid preparations, or water-based chemical formulations; confirm product compatibility, materials, and seals before specifying equipment.
Optional features may include temperature control, variable-speed drive, insulation, and a control panel, depending on model compatibility. These choices affect operator control, heat retention, and batch handling. Routine cleaning and inspection should follow the product, cleaning method, and installed configuration.
Technical Specifications
| Product name | Jacketed cooking kettle |
|---|---|
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; configuration dependent |
| Body | Fixed or tilting, depending on model |
| Tilting | Manual or hydraulic where applicable |
| Agitation | Optional agitator; configuration dependent |
| Temperature control | Optional, depending on model |
| Customization | Available on request |
FAQs
Can every size use each heating method? No. Confirm availability for the selected capacity and model.
How do I choose a material? Share ingredients, cleaning practices, and any compatibility requirements for review.
Can the kettle tilt? Tilting is model-dependent; manual or hydraulic operation may be available.
What details help with a quotation? Provide batch size, product viscosity and solids, heating source, agitation needs, and discharge method.
Can options be combined? Temperature control, variable speed, insulation, and panels depend on configuration compatibility.
Request a Configuration Review
Wenzhou Ace Machinery provides factory-direct manufacturing and customization. Send your required capacity, product, preferred heating method, and agitation or tilting requirements so our team can review a suitable configuration.
