Cook sauces, jams, soups, syrups, and other suitable batches in a jacketed kettle configured around your production needs. Available in 50L to 1000L capacities, with SUS304 or SUS316L construction and model-dependent electric, steam, gas, or thermal oil heating. Optional agitation, temperature control, and fixed or tilting vessel arrangements can be discussed with Wenzhou Ace Machinery.

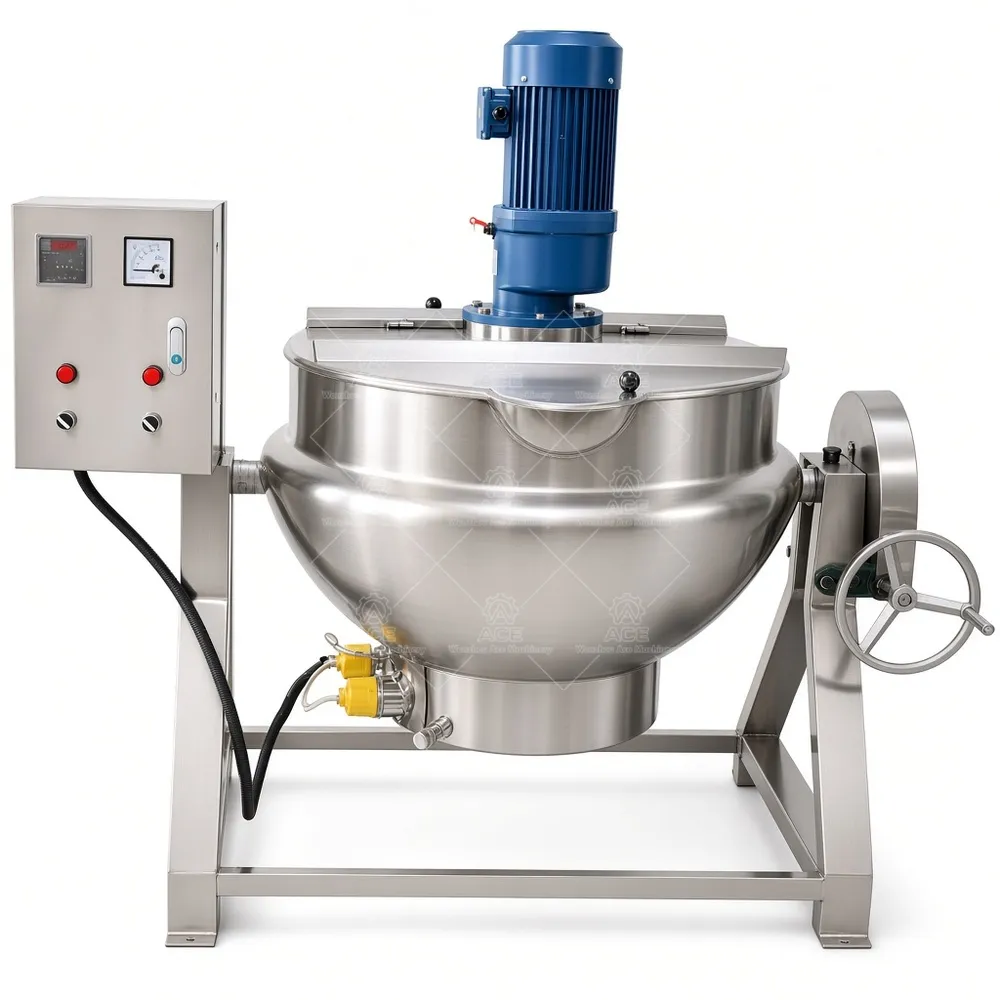

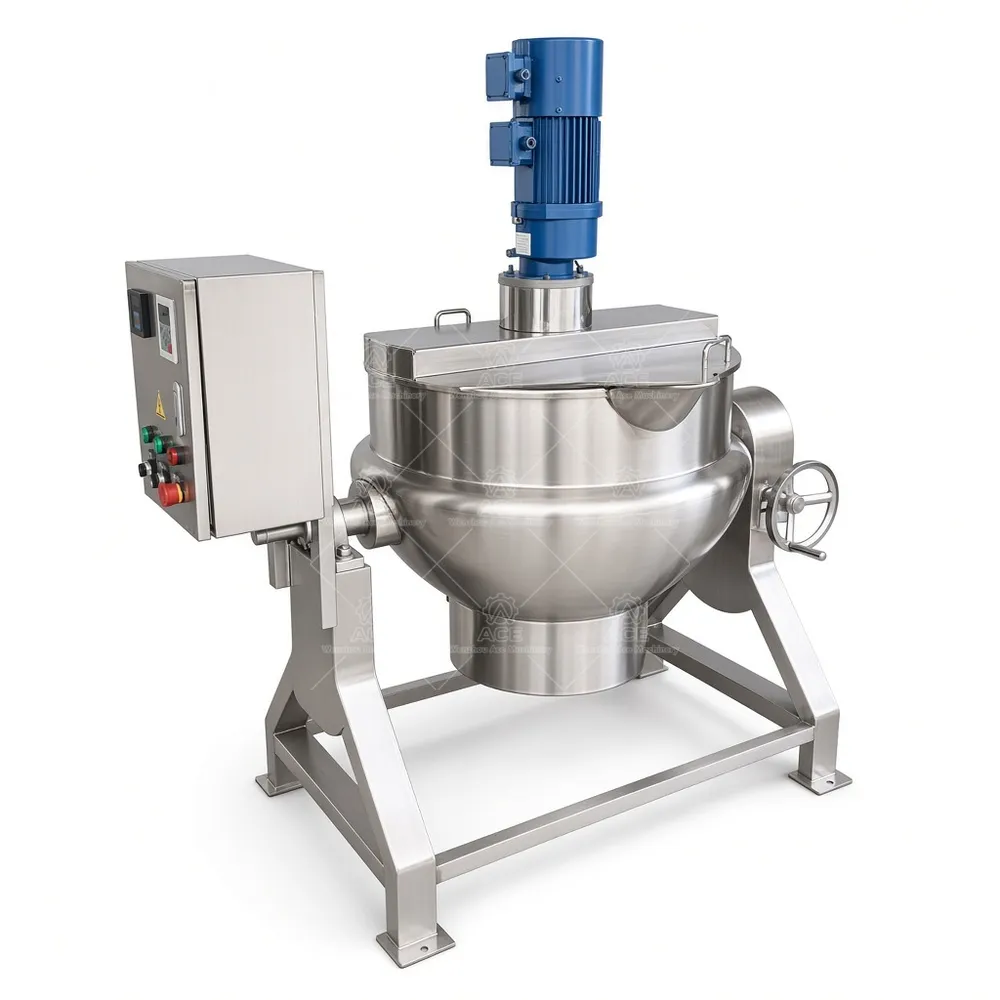

Steam Jacketed Kettle with Agitator for Candy, Sauce and Jam Production
价格范围：$2,039.15 至 $2,201.67
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Steam-Jacketed Kettle for Controlled Batch Cooking
Thick tomato sauce, fruit jam, and candy mixtures can scorch or cook unevenly when heat is applied directly to the vessel. A steam-jacketed kettle transfers heat indirectly through the jacket surrounding the product bowl. An optional agitator moves the batch during cooking, supporting more even contact with the heated surface and helping operators manage products that need regular mixing. Results depend on the recipe, batch size, heating source, and selected configuration.
Wenzhou Ace Machinery manufactures kettles in 50L, 100L, 200L, 300L, 500L, and 1000L capacities. Depending on the model, the vessel can be fixed or tilting. A mixer, temperature control, variable-speed drive, insulation, control panel, and other custom features may be available when compatible with the selected kettle. Tilting operation, where offered, can be manual or hydraulic. These choices affect loading, mixing, discharge, and cleaning routines; they are not available in every combination.
Typical Processing Uses
Food producers use jacketed kettles for sauces and gravies, fruit jams and fillings, soups and stocks, syrups, candy mixtures, dairy blends, and other suitable foods. A fruit filling may need gentle agitation to protect pieces, while a thicker sauce may require a mixer selected for its viscosity. Tell us whether the batch contains particulates, thickens during heating, or needs a particular discharge method.
Related non-food processing, such as creams, lotions, liquid detergents, or compatible water-based formulations, requires confirmation of process suitability and material and seal compatibility. A configuration intended for one product should not be assumed suitable for every formulation.
Technical Specifications
| Item | Details |
|---|---|
| Product name | Jacketed cooking kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel configuration | Fixed or tilting; model dependent |
| Tilting option | Manual or hydraulic, where applicable |
| Agitation | Optional; configuration depends on product and model |
| Temperature control | Optional, subject to configuration |
| Customization | Available on request |
Configuration and Ordering
We supply directly from our manufacturing operation and can discuss customization around product characteristics, batch volume, available heat source, agitation, and discharge needs. For a useful quotation, share your target batch size, recipe or product description, viscosity changes during cooking, preferred material, plant utilities, and any cleaning or workflow constraints. Our team can then review suitable options without assuming every capacity supports every heater or accessory.
Frequently Asked Questions
Can every capacity use every heating method? No. Heating options depend on the selected model and requirements.
Is an agitator included? It is an optional feature; share the product and mixing needs.
Can the kettle tilt? Tilting is model dependent and may be manual or hydraulic where available.
Which steel should I request? SUS304 and SUS316L are available; discuss product and cleaning conditions with us.
What information helps with selection? Capacity, product, heating source, mixing, and discharge requirements are a good starting point.
Can you customize the configuration? Yes, subject to model compatibility and process requirements.
Request a Configuration Review
Send Wenzhou Ace Machinery your required capacity, product, preferred heating method, and agitation or tilting requirements. Include discharge and production details so we can discuss a kettle configuration suited to your process.
