Wenzhou Ace Machinery jacketed cooking kettles are available in 50L to 1000L capacities, with SUS304 or SUS316L stainless steel and model-dependent heating, stirring, and vessel options. Designed for batch cooking applications such as sauces, soups, jams, syrups, dairy products, and fillings. Share your product, batch size, heat source, and handling requirements to discuss a suitable configuration.

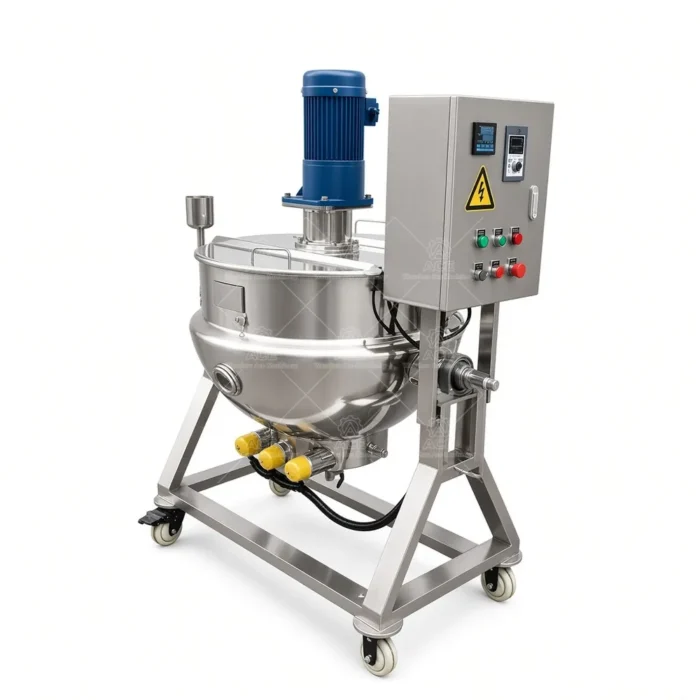

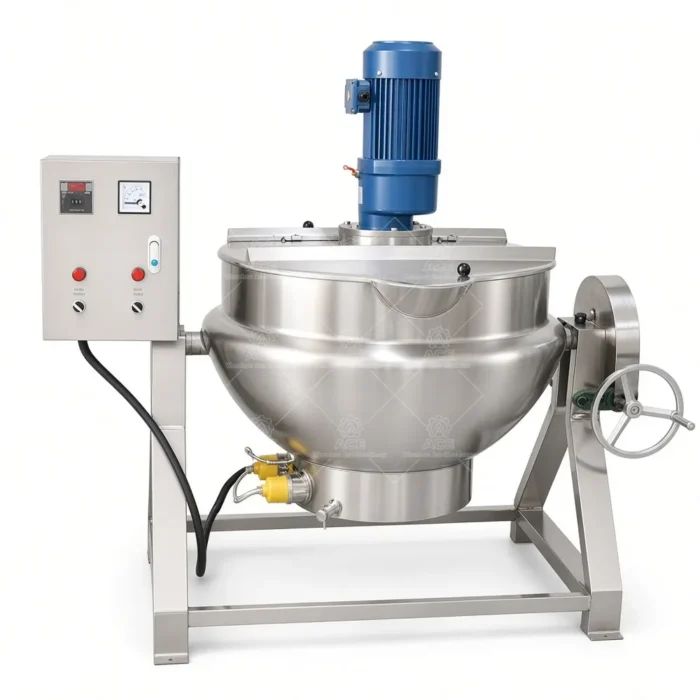

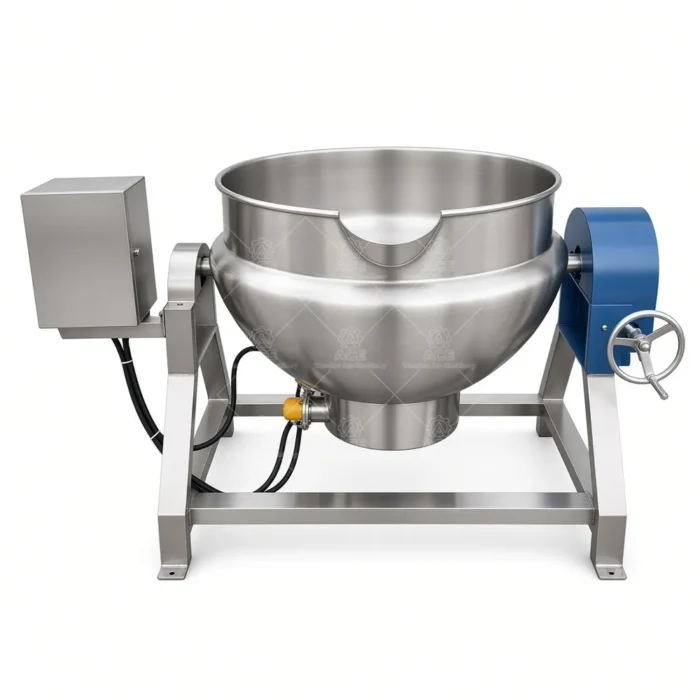

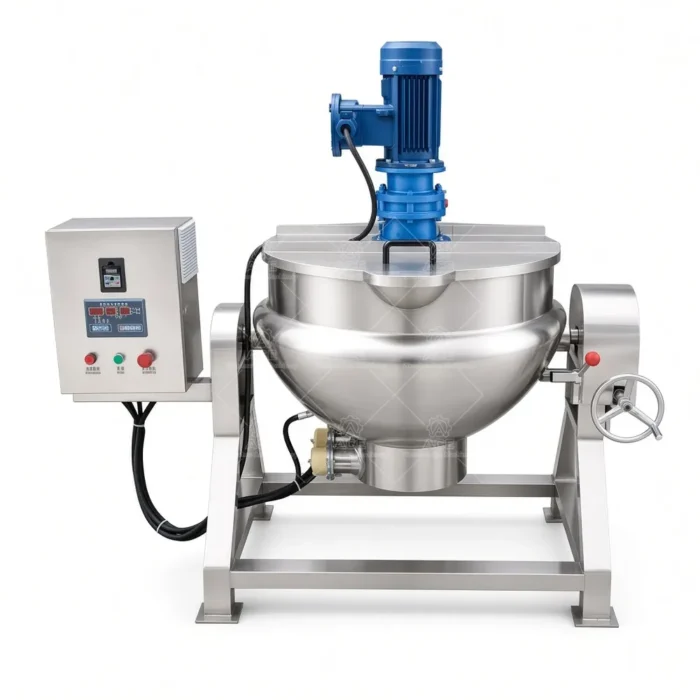

Automatic Stirring Jacketed Cooking Kettle for Food Processing
价格范围：$1,973.42 至 $2,145.70
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation
- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products
Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Jacketed Cooking Kettle for Controlled Batch Production
When a batch scorches at the vessel wall or needs frequent manual stirring, kettle selection becomes a process decision, not just a capacity choice. Wenzhou Ace Machinery manufactures jacketed cooking kettles in 50L, 100L, 200L, 300L, 500L, and 1000L options. The final configuration depends on the product, heat source, and required handling method.
Heating through the jacket transfers heat indirectly to the vessel, rather than applying the heat source directly to the food. An optional stirrer can support product movement during cooking; its suitability depends on the recipe and model. For example, a fruit filling and a thick sauce place different demands on mixing and discharge. Share product viscosity and batch size when requesting a configuration.
Features for Daily Production
- Material choice: SUS304 or SUS316L stainless steel, selected to suit the product and cleaning conditions.
- Heating options: electric, steam, gas, or thermal oil heating, subject to model compatibility and site utilities.
- Vessel handling: fixed or tilting construction; where tilting is available, operation may be manual or hydraulic.
- Production controls: optional temperature control, variable-speed drive, insulation, control panel, and other model-compatible customizations.
These options can help fit the kettle into an existing batch routine, but they are not available in every combination. Confirm installation space, available heat source, cleaning practices, and how cooked product will be transferred.
Applications
Typical food uses include sauces, gravies, soups, jams, fruit fillings, syrups, dairy products, and confectionery mixtures. Other food applications should be reviewed against the recipe, heating needs, and mixing requirements. Cosmetic, personal-care, pharmaceutical, or chemical use requires a separate review of product compatibility, materials, seals, and process requirements; one configuration is not suitable for every formulation.
Technical Specifications
| Item | Specification |
|---|---|
| Product | Jacketed cooking kettle |
| Available capacity | 50L, 100L, 200L, 300L, 500L, 1000L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model dependent |
| Vessel / tilt | Fixed or tilting; manual or hydraulic tilt where applicable |
| Agitation / temperature control | Optional; configuration dependent |
| Customization | Available according to product and process requirements |
FAQs
How do I choose capacity? Provide your normal batch size and any headspace or handling requirements.
Can every size use every heat source? No. Heating options depend on the selected model and project requirements.
Is a stirrer included? It is an optional feature; describe the product consistency and mixing needs.
Can the kettle tilt? Tilting is model dependent, with manual or hydraulic operation where applicable.
What should I send for a quotation? Include capacity, product, preferred heat source, stirring or tilting needs, and discharge method.
Discuss Your Kettle Configuration
As a factory-direct manufacturer, Wenzhou Ace Machinery can review custom requirements against the intended process. Send your target capacity, product details, available heat source, and stirring, tilting, and discharge requirements so our team can recommend a suitable configuration.
