Wenzhou Ace Machinery manufactures 50 to 1000 L steam jacketed kettles for batch cooking and mixing. Choose from SUS304 or SUS316L stainless steel, with electric, steam, gas, or thermal oil heating options depending on the model. Fixed or tilting configurations and selected mixer and control options can be discussed around your product, batch size, and production workflow.
Steam Jacketed Kettle with Mixer 50 to 1000 L for Food Processing
价格范围：$2,222.07 至 $2,438.06
Request a quote
A food grade stainless steel kettle offers many advantages, like easy cleaning, resistance to corrosion, and durability. Its scraper mixing system allows continuous movement of product, prevents sticking and burning, and promotes heat transfer. The handwheel provides adjustable tilting to allow easy disposal of processed product and the motor allows for stable and reliable mixing.
Main Features
- Food-grade stainless steel construction for hygiene and durability
- Jacketed heating system for fast and even heat distribution
- Built-in scraper agitator to prevent sticking and improve mixing efficiency
- Powerful motor drive system for stable operation

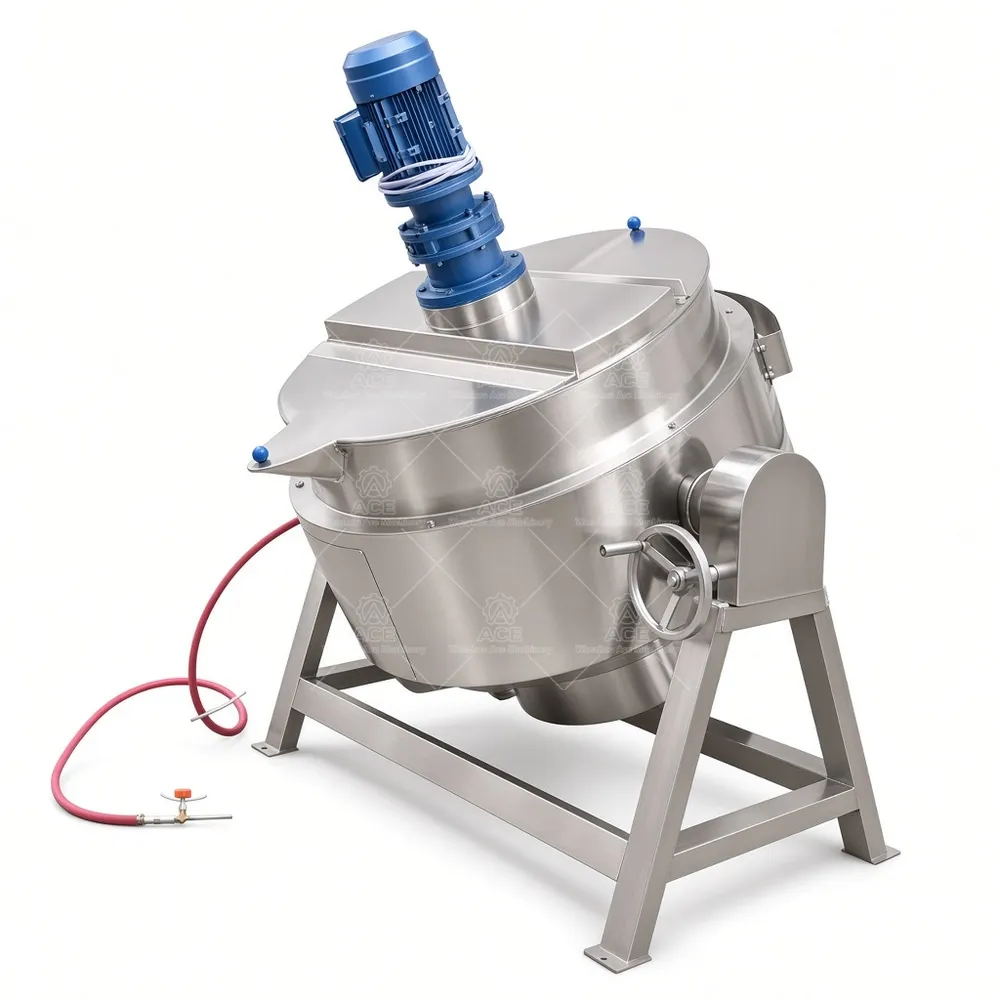

- Tilting kettle design for easy material discharge
- Independent control box for convenient operation
- Heavy-duty support frame for enhanced stability
- Suitable for cooking, boiling, mixing, and concentrating various food products

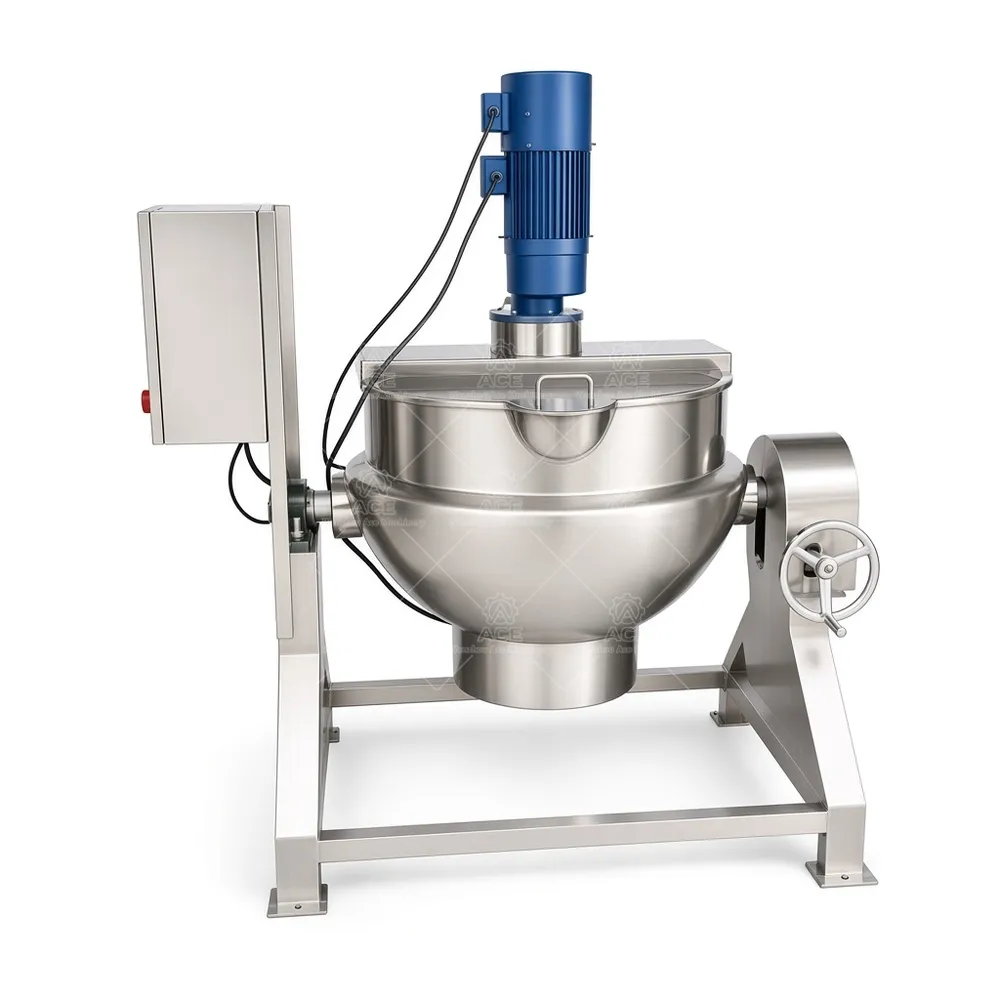

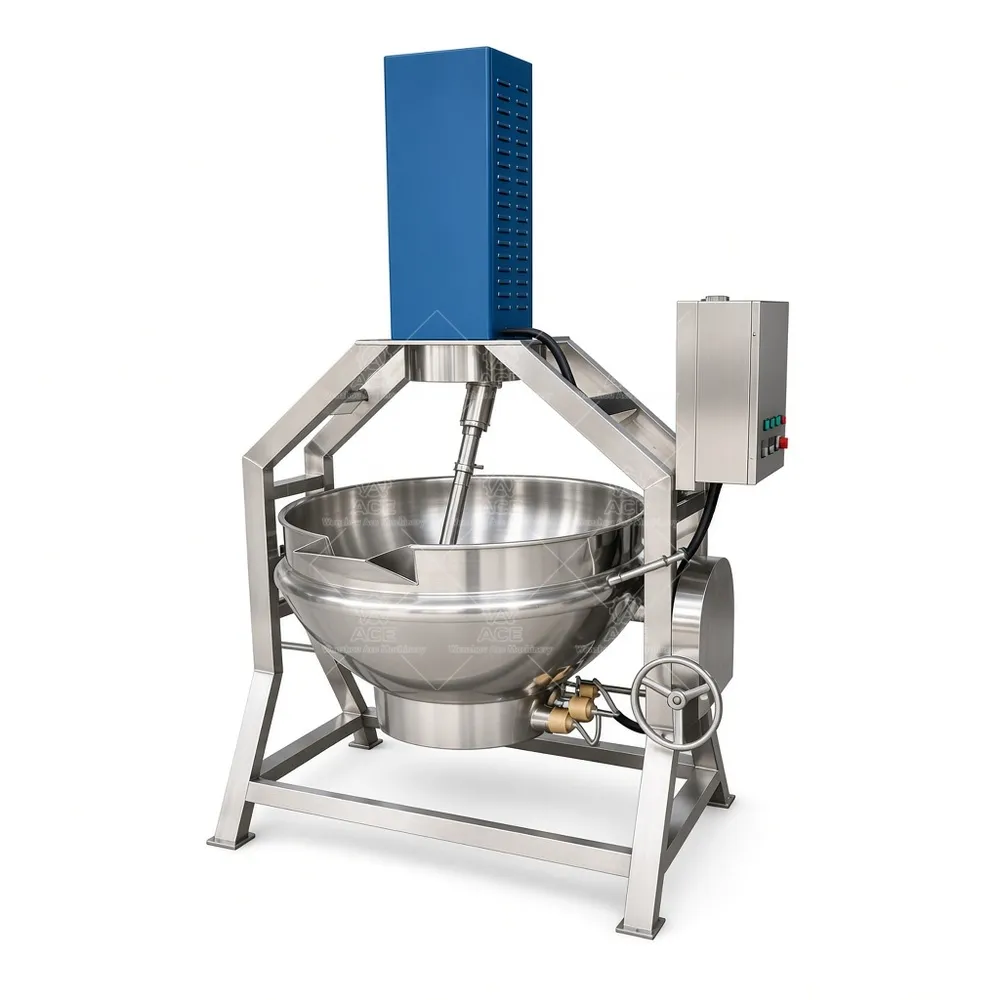

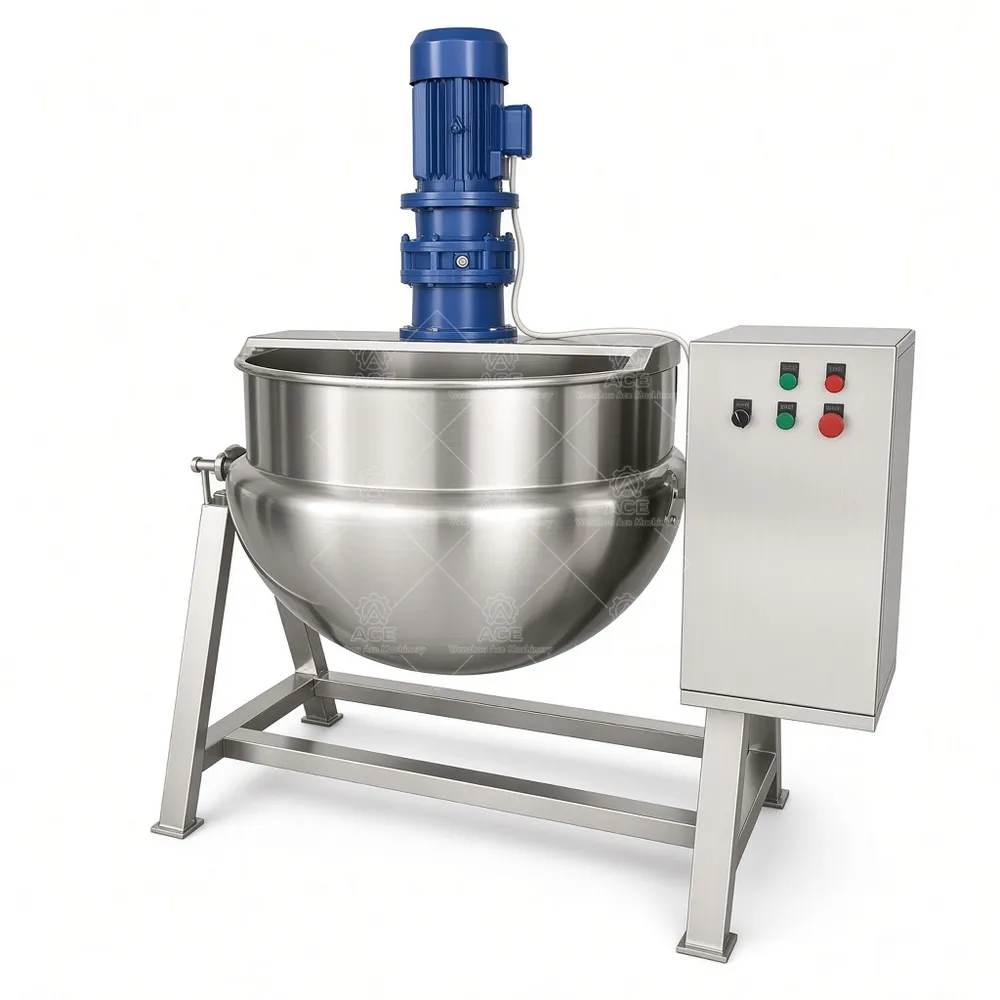

Main Components
- Motor: Provides driving power for the mixing system
- Scraper: Continuously mixes materials and prevents product adhesion
- Kettle Body: Stainless steel processing chamber with jacketed heating structure
- Handwheel: Controls kettle tilting for convenient discharge
- Control Box: Manages machine operation parameters
- Support Frame: Provides stable and safe equipment support
Jacket heating for cooking and processing
Slow-speed mixing and product circulation
Scrapes material from the kettle wall
Helps reduce sticking and localized overheating
Suitable for cooking, simmering, and mixing viscous products
Combines jacket heating, scraping, and high-shear mixing
Helps produce smoother emulsions and more uniform mixtures
Reduces certain types of agglomeration
Suitable for products requiring finer dispersion or emulsification
Steam Jacketed Kettle for Controlled Batch Cooking
Cooking thick products in a direct-fired pan can create hot spots, sticking, or difficult-to-manage temperature changes. Our jacketed kettle heats the product indirectly: a selected heating medium warms the vessel through its jacket, while the batch is cooked in the inner kettle. This arrangement suits recipes that need steady heating and routine stirring, though results depend on the product, batch size, and selected configuration.

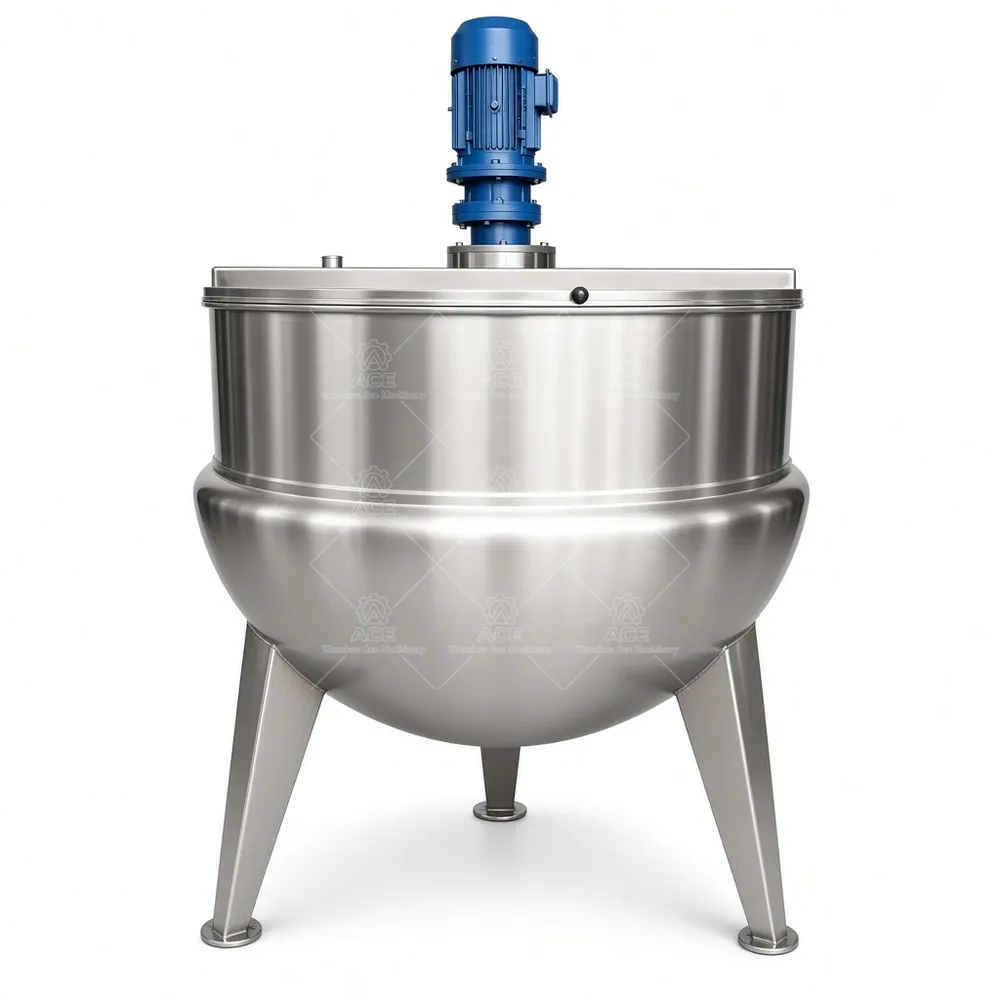

Wenzhou Ace Machinery manufactures 50, 100, 200, 300, 500, and 1000 L models in SUS304 or SUS316L stainless steel. Heating options include electric, steam, gas, and thermal oil; availability varies by model. Fixed and tilting bodies are available on applicable models. A tilt can support batch discharge, while a fixed kettle may suit a process with a separate transfer method. Manual or hydraulic tilt is available where compatible.
Features for Production
- Optional mixer: Helps keep stirred products moving during cooking, reducing reliance on continuous manual agitation. Mixer style and compatibility depend on the recipe and model.
- Temperature control and control panel: Support routine process operation; exact functions are configuration-dependent.
- Variable-speed drive and insulation: Optional where compatible. Speed adjustment can help match agitation to a product, while insulation may suit the facility’s operating requirements.
- Material selection: SUS304 or SUS316L can be discussed in relation to ingredients, cleaning practices, and process conditions.
Applications
Typical food batches include sauces, gravies, soups, fruit jams and fillings, caramel, sugar syrup, candy mixtures, dairy blends, and liquid seasonings. Thick fruit fillings or sugar cooks may need a different mixer approach than broth or a dairy mixture. Salad dressings, mayonnaise, and dispersions of starches, gums, stabilizers, or thickeners require recipe-specific mixing review; this kettle is not an inline rotor-stator system. Cosmetics, personal-care products, pharmaceutical liquids, and compatible chemical mixtures may be considered only after confirming materials, seals, cleaning, and process suitability.
Technical Specifications
| Product name | Jacketed kettle |
|---|---|
| Available capacity | 50, 100, 200, 300, 500, and 1000 L |
| Material | SUS304 or SUS316L stainless steel |
| Heating | Electric, steam, gas, or thermal oil; model-dependent |
| Body configuration | Fixed or tilting, depending on model |
| Tilting | Manual or hydraulic where applicable |
| Agitation and controls | Optional mixer, temperature control, variable-speed drive, and control panel; configuration-dependent |
| Customization | Available according to product and process requirements |
FAQs
How do I choose capacity? Share the working batch size and production frequency; nominal capacity alone does not define a suitable batch.
Can every model use every heat source? No. Heating and accessory compatibility depend on the selected model.
Can the kettle tilt? Tilting is available on applicable models, with manual or hydraulic operation as specified.
What details help size the mixer? Provide product viscosity, ingredients, batch volume, and whether the product thickens during heating.
What should I send for a quotation? Include capacity, product, preferred heat source, discharge method, and mixing or tilting needs.
Request a Configuration Review
As a factory-direct manufacturer, we can discuss a configuration around your product, batch size, heat source, agitation, and discharge workflow. Send these details to Wenzhou Ace Machinery for a practical model recommendation.
